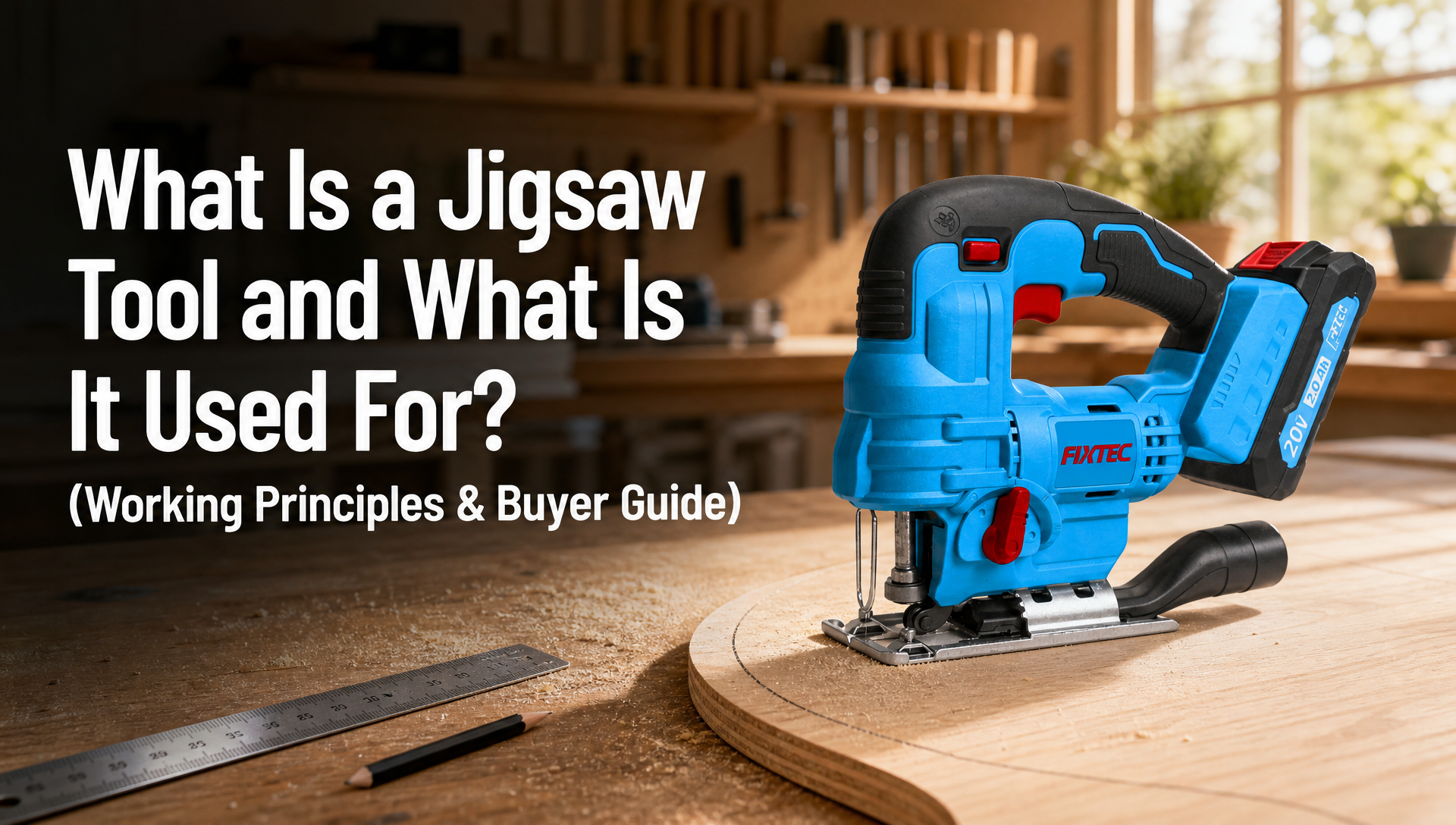

If you are sourcing power tools for your wholesale catalog or retail shelves, understanding what a jigsaw tool is used for goes far beyond basic woodworking. From intricate curve cutting to multi-material fabrication, the electric jigsaw is one of the fastest-moving items in modern hardware distribution. This blog breaks down how jigsaws work, their critical internal components, key cutting applications, and how to source high-margin models that match your local market.
A jigsaw tool is a handheld power saw equipped with a narrow, reciprocating blade designed to cut curves, complex shapes, bevels, and straight lines across a wide variety of materials. Operating in an up-and-down oscillating stroke, it gives the operator precise directional control that rigid-blade saws simply cannot match.
While a circular saw is built for high-speed straight rip cuts and a reciprocating saw is engineered for rough demolition, an electric jigsaw is the master of delicate cutouts, interior openings, and contoured profiles. For hardware distributors and tool importers, it bridges the gap between rough structural cutting and fine finishing tools, making it an essential core SKU for woodworking, interior remodeling, cabinetry, and general fabrication.
When evaluating an electric jigsaw supplier or comparing wholesale samples, understanding internal anatomy is critical. The engineering quality of these six components directly dictates tool lifespan, cutting stability, and your after-sales warranty return rate:
The motor converts electrical energy into mechanical movement through an eccentric gear mechanism that drives the blade shaft up and down. High-performance models utilize 100% pure copper wire motors with reinforced armatures to resist heat buildup under prolonged load. In the modern cordless segment, brushless motors have become the industry benchmark—delivering 20% higher energy efficiency, reduced maintenance, and a significantly longer operational life compared to traditional brushed motors.
The blade is the cutting consumable, but the clamp mechanism dictates operator safety and workflow. The market has standardized on T-shank blades over older U-shank designs. Sourcing models with a quick-release, tool-free blade clamp allows users to swap blades in seconds without hex keys, eliminating blade slippage and ensuring precise perpendicular alignment during high-load cuts.
The base plate (often called the shoe) supports the tool against the workpiece, dampening vibration and maintaining cutting depth. Professional-grade units feature a heavy-duty die-cast aluminum base rather than stamped sheet metal. It provides calibrated bevel adjustments from 0° to 45° left and right, with positive stops at popular angles for clean miter joints. A non-marring plastic shoe cover is often included to protect sensitive laminates from surface scratching.
Also known as pendulum action, this selector adjusts the forward aggressiveness of the blade. A typical 4-stage orbital setting allows operators to adjust cutting performance:
l Setting 0: Pure vertical stroke for clean, splinter-free cuts in metal, plastic, and dense hardwood.
l Settings 1–3: Adds progressive forward blade thrust on the upstroke, dramatically accelerating cutting speed in softwoods and construction lumber.
Different materials demand different cutting tempos. An intuitive electronic variable speed dial (typically ranging from 800 to 3,000 SPM — strokes per minute) paired with a lock-on trigger switch allows contractors to maintain a steady cadence through deep cuts without hand fatigue. Slower speeds prevent melting in plastics and overheating in steel, while maximum speed delivers rapid cutting in timber.
Commercial buyers demand comfort and visibility. Sourcing jigsaws with rubberized soft-grip D-handles (or compact barrel-grip designs) reduces operator vibration. Integrated dust blowers clear the cutline ahead of the blade, while a rear dust extraction vacuum port ensures compliance with stringent indoor jobsite safety standards.
At its mechanical foundation, an electric jigsaw relies on a rotating counter-balanced crankshaft that translates the motor’s rotary motion into a rapid linear reciprocating stroke. The blade cuts primarily on the upstroke (pulling the material firmly against the base shoe for cutting stability), while the downstroke returns the blade to the starting position.
Cutting tempo is measured in Strokes Per Minute (SPM), typically adjustable between 800 and 3,000 SPM with an average stroke length of 18mm to 26mm depending on tool design.
When orbital action is engaged, the roller guide nudges the blade forward into the cutline during the upward cutting cycle, then retracts on the downward return stroke. This subtle elliptical path reduces friction on the blade teeth, facilitates rapid sawdust evacuation, prevents heat buildup, and significantly accelerates feed speed through dense lumber without bogging down the motor. For your wholesale buyers, orbital functionality is a critical benchmark that separates contractor-grade tools from basic entry-level units.
To market jigsaws effectively to your regional dealer network or commercial clients, you must understand their specific end-use applications across multiple trade and DIY sectors:
The signature capability of an electric jigsaw is navigating tight radii, scrollwork, and organic curves. Cabinetmakers, furniture builders, and carpenters rely on it for shaping table tops, creating custom moldings, cutting decorative brackets, and profiling intricate wooden components where bulky circular saws or stationary bandsaws cannot operate.
By releasing the base shoe clamp, operators can tilt the shoe to produce precise beveled edges up to 45° left or right. This function is essential for installing baseboards, fitting architectural trim, and creating intersecting angled joints in finish carpentry without requiring a dedicated miter saw on site.
In kitchen, bath, and electrical remodeling, installers use jigsaws to execute interior drop-in cutouts without cutting in from the board's edge. By pre-drilling a pilot hole (or executing a controlled plunge cut), the tool enters countertops to create clean openings for kitchen sinks, cooktops, electrical gang boxes, and ventilation ducts across laminates and solid timber.
With the appropriate specialized blade, a modern jigsaw cuts far beyond lumber:
Sheet Metal & Aluminum: Fine-tooth Bi-Metal blades cut thin sheet steel, aluminum extrusions, and copper pipes with minimal burrs and zero sparks.
Plastics & PVC: Lower speed settings slice cleanly through PVC conduit, vinyl flooring, acrylics, and plexiglass without melting edges.
Tiles & Composites: Carbide-grit blades handle custom curved cuts in ceramic wall tile, cement backer board, and fiberglass panels for plumbing fixture clearances.
Structuring your wholesale product range requires balancing market price sensitivity against emerging technological trends. Both formats play defined roles in a profitable power tool distribution catalog:
Comparison Metric | Corded Electric Jigsaws | Cordless 20V Lithium-Ion Jigsaws |
Power Source | AC Mains (110V–120V / 220V–240V) | 20V Max Lithium-Ion Battery Platform |
Typical Motor Output | 500W – 800W continuous input | High-torque brushless DC motor optimized for battery efficiency |
Runtime & Duty Cycle | Continuous 24/7 runtime; no battery downtime | Dependent on pack size (2.0Ah–4.0Ah per charge) |
Jobsite Portability | Limited by extension cord reach | Complete freedom; ideal for roofs, scaffolding, outdoors |
Unit Price Point | Lower initial purchase cost | Higher unit ticket price (Tool bare / kit bundles) |
Target Distribution Channels | Workshop woodworkers, price-sensitive wholesale, tender bids | Modern retail chains, professional contractors, tool e-commerce |
Price-sensitive & Industrial Markets: Lead with an800W corded electric jigsaw featuring a robust metal gearbox, 4-stage orbital selector, and variable speed. It represents a dependable, heavy-duty workhorse for workshops and budget-conscious hardware retail.
Developed & Commercial Markets: Prioritize 20V brushless cordless jigsaws. Selling cordless units allows you to supply unified 20V battery systems, encouraging repeat commercial orders across complementary cordless drills, angle grinders, and circular saws under a single battery platform.
Sourcing power tools from international trading partners and brand suppliers is a strategic investment. When vetting a jigsaw supplier in China or preparing bulk procurement orders, ensure your partner satisfies these commercial standards:
Poorly assembled jigsaws lead to blade deflection, excessive hand fatigue, and high customer returns. Inspect physical samples for tight housing seam alignment, smooth roller guide tracking without excessive lateral play, and a flat, sturdy base shoe that stays securely locked at 90° and 45° angles during continuous cutting.
Never import uncertified electrical machinery. Verify that your supply partner provides authentic, product-specific CE/EMC/LVD reports for European markets, GS certification for premium German and Central European hardware channels, and UL/ETL listings for North American customs clearance.
A dependable supplier enforces a clear multi-stage QA process:
Incoming Material Inspection (IQC): Verifying copper purity in motor windings, casing plastics impact resistance, and battery cell consistency.
In-Line Quality Control (IPQC): Monitoring switch actuation endurance, gear lubrication, and bevel clamp tightness.
Outgoing Final Inspection (OQC): 100% no-load and full-load electrical safety testing and packaging integrity audits prior to container sealing.
Evaluate your export partner' s logistical responsiveness and flexibility. Look for reliable power tool suppliers and trading partners who support manageable trial order quantities to help you test regional demand before committing to full container loads, maintain dependable delivery schedules, and back their products with accessible replacement parts (such as switches, carbon brushes, and guide rollers) to support your local retail warranty.
Backed by over two decades of international export experience serving 150+ countries, FIXTEC is a premier power tools brand and wholesale electric jigsaw supplier backed by modern technical infrastructure, including automated motor winding and testing lines, high-precision assembly processes, and dedicated lithium-ion battery pack assembly:
High-Power Corded Series (550W–800W): Fitted with heavy-duty copper motors, 4-stage orbital selectors, and rigid aluminum base plates for demanding jobsite duty.
20V Brushless Cordless Jigsaws: Powered by the FIXTEC One-Battery-For-All 20V platform, allowing your end customers to swap a single battery pack across our entire 20V power tools range. Every battery pack is engineered with intelligent BMS power-off protection(preventing overload, overcharging, overheating, and deep discharge) to guarantee maximum jobsite safety and prolonged cell longevity.
Distributor-Friendly Supply Terms: Benefit from ready-to-ship inventory with 5–7 day dispatch, flexible MOQ starting from just 1 carton, 1% free spare parts on bulk orders, and full CE, GS, RoHS, and ETL certification packages ready for immediate import clearance.
From intricate curve cutting in cabinetry to quick jobsite pipe trimming, stocking the right wholesale electric jigsaws allows tool distributors and hardware retailers to capture consistent, high-margin turnover across both trade and DIY markets. If you are looking to expand your catalog through reliable bulk power tools sourcing from an established electric jigsaw manufacturer and supplier with competitive pricing, flexible minimum orders, and comprehensive certification coverage — contact FIXTEC today to request our full tools catalog and quotation.
1: Can an electric jigsaw replace a circular saw?
No, they are complementary tools. A circular saw excels at rapid, straight rip cuts through thick boards, while a jigsaw is engineered specifically for curves, intricate shapes, and interior cutouts (like sink openings). Most professional trade buyers stock and use both.
2: What is the difference between T-shank and U-shank jigsaw blades?
T-shank is the modern global standard. T-shank blades feature tool-free, quick-release locking that prevents slipping under high torque. U-shank blades require manual fastening with a screw or hex key. For wholesale distributors, stocking T-shank compatible jigsaws covers 90%+ of current market demand.
3: Can I mix different power tools and accessories in a single wholesale order?
Yes, mixed-container and multi-category consolidation are fully supported. As a one-stop tools supplier offering 2,500+ SKUs across power tools, hand tools, and accessories, FIXTEC allows distributors to combine electric jigsaws with cordless drills, saw blades, and safety gear in one shipment to minimize warehouse capital lockup.
4: Does FIXTEC offer exclusive regional distributorships for power tools?
Yes, exclusive territory agreements are available for qualified partners. To protect our distributors' marketing investment and local profit margins, we provide territory exclusivity, branded marketing materials, showroom display support, and joint promotional planning once annual purchasing targets are established.
